When I was returning from Bermuda last season I grabbed my pedestal guard for support when returning to the cockpit after putting a reef in the main….and it snapped on the starboard side at the juncture of an instrument pod. The guard remained in place but I tried not to grab it on that side. The following day I effected a temporary fix by splinting it with three 1/4X20 bolts, a couple hose clamps and rigging tape to ensure nothing snagged on it.
It was a 1” guard and I could have had a replacement made but I figured it was time to upgrade to a 1 1/8” guard. I have a Yacht Specialties pedestal so this wasn’t going to be easy as they ceased operation years ago. After searching the web I found that Garmin (who would have ever thought an instrument maker would have played a role in this project) offers not only a selection of pedestal guards in several profiles and sizes, but also a key component, that being a pedestal guard bracket which fits a Yacht Specialties pedestal and allows the use of a 1 1/8” pedestal guard. This component converts from a 12 1/2” wide guard to today’s standard 12” wide, although 9 1/2” is also used today. I also ordered new pods for my MFD and autopilot.
It wasn’t fun stripping off the components to be replaced as it necessitated removing the compass, throttle, gear selector, and their associated linkages, …..and all the wiring. Plus the mounting bases for the old pedestal, once removed, revealed wiring holes and mounting holes. These had to be ground out, filled with glass, faired and gel coated in preparation for the new bases to be installed. Fill old holes and make new ones sums it up.
Now….finally…I was able to start putting things back together. It’s always a bit nerve wracking but fun playing with new stuff. Everything went back together reasonably easily. The guard height had to be trimmed by 5 1/2” but you really can’t tell precisely until everything is put back together. So….take it all apart once again, trim the legs, and put it all back together again….oh well, it’s all fun, more fun than any day I ever had at the office anyway.
I’m very happy with the result.
It was a 1” guard and I could have had a replacement made but I figured it was time to upgrade to a 1 1/8” guard. I have a Yacht Specialties pedestal so this wasn’t going to be easy as they ceased operation years ago. After searching the web I found that Garmin (who would have ever thought an instrument maker would have played a role in this project) offers not only a selection of pedestal guards in several profiles and sizes, but also a key component, that being a pedestal guard bracket which fits a Yacht Specialties pedestal and allows the use of a 1 1/8” pedestal guard. This component converts from a 12 1/2” wide guard to today’s standard 12” wide, although 9 1/2” is also used today. I also ordered new pods for my MFD and autopilot.
It wasn’t fun stripping off the components to be replaced as it necessitated removing the compass, throttle, gear selector, and their associated linkages, …..and all the wiring. Plus the mounting bases for the old pedestal, once removed, revealed wiring holes and mounting holes. These had to be ground out, filled with glass, faired and gel coated in preparation for the new bases to be installed. Fill old holes and make new ones sums it up.
Now….finally…I was able to start putting things back together. It’s always a bit nerve wracking but fun playing with new stuff. Everything went back together reasonably easily. The guard height had to be trimmed by 5 1/2” but you really can’t tell precisely until everything is put back together. So….take it all apart once again, trim the legs, and put it all back together again….oh well, it’s all fun, more fun than any day I ever had at the office anyway.
I’m very happy with the result.
- Attachments
-

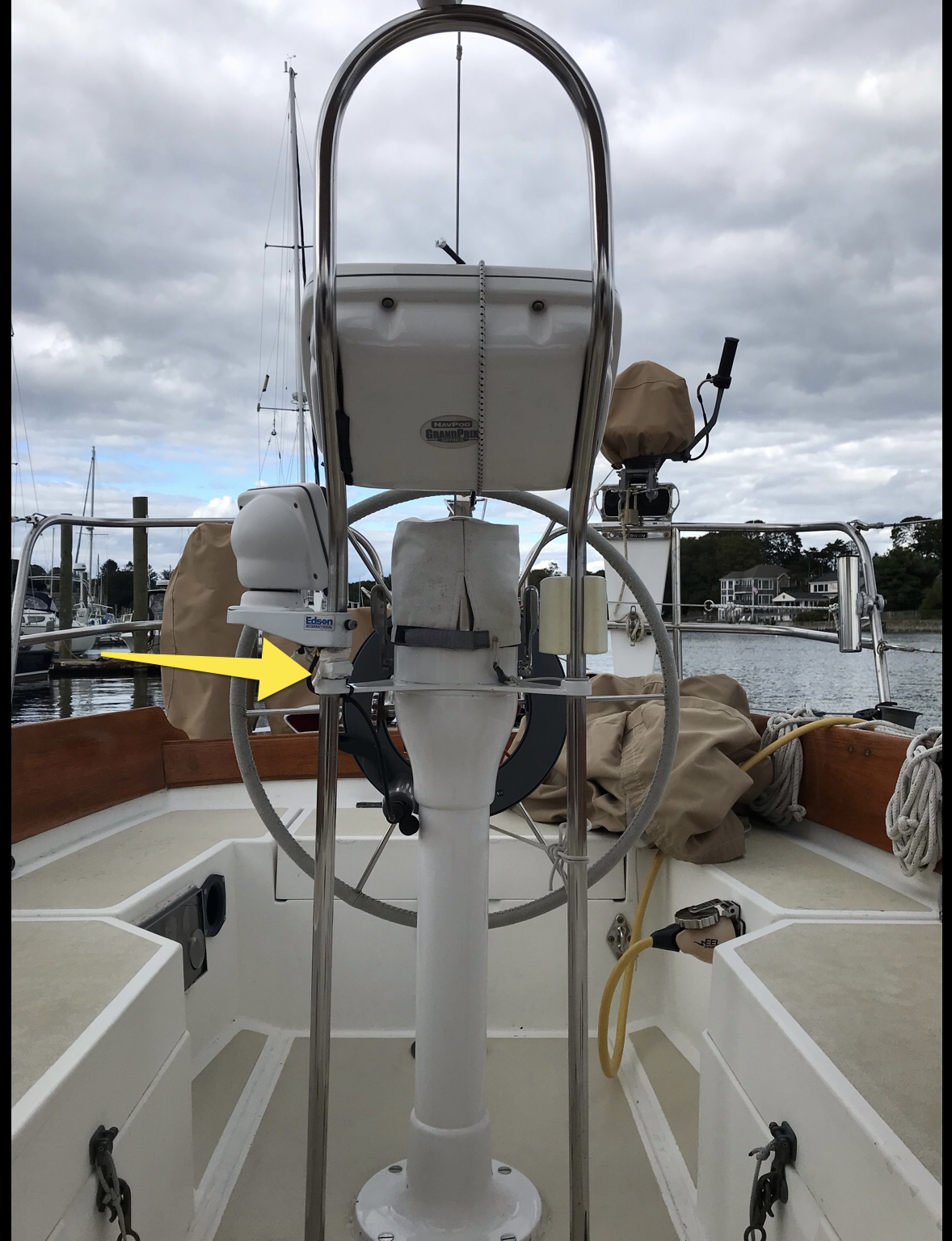

- Arrow showing location of break.
- 89472A11-9A37-4289-8E29-0524B537C46B.jpeg (468.25 KiB) Viewed 231 times
-

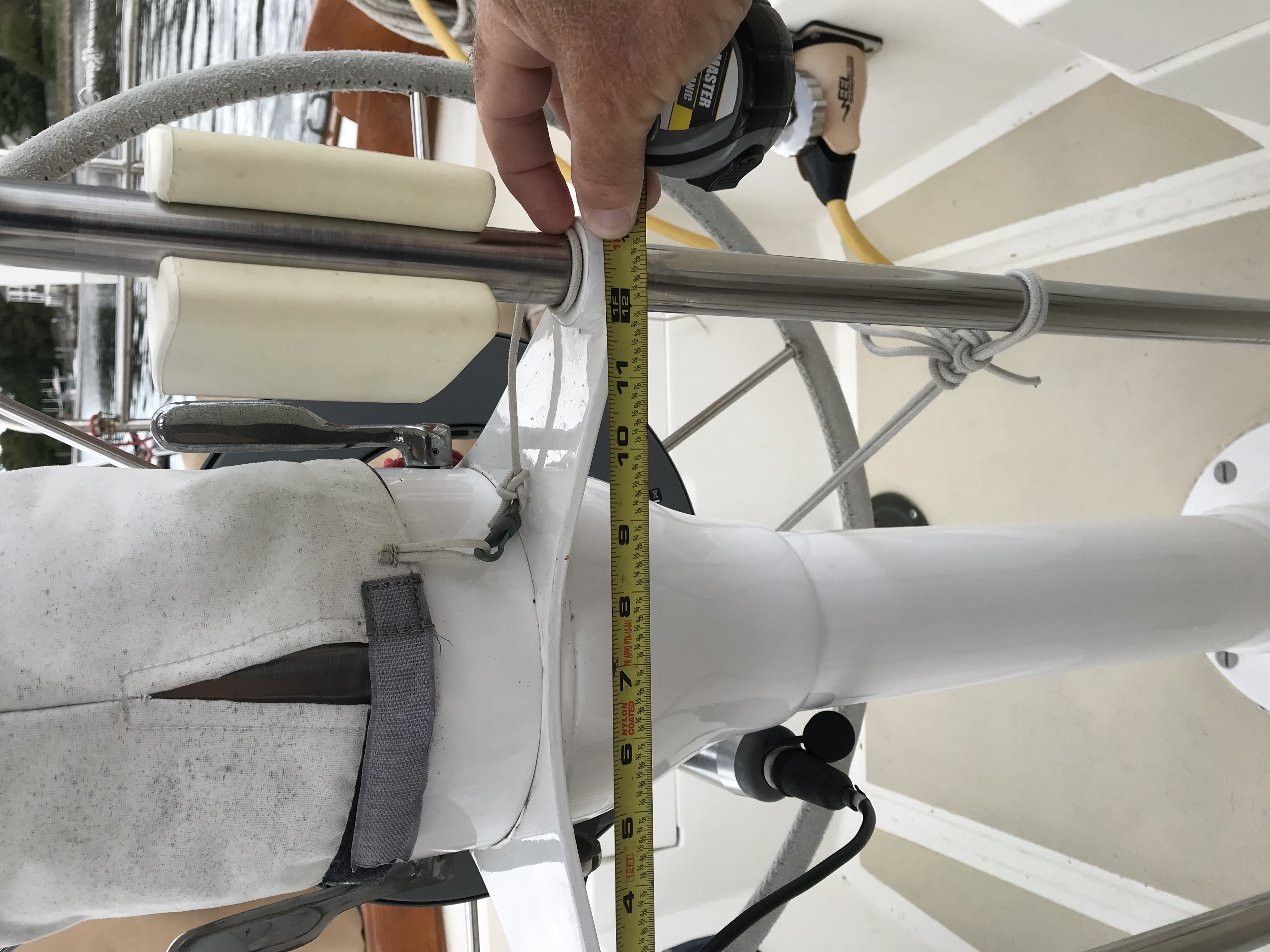

- Old guard bracket and width measurement.
- 37B9C2CC-B685-4C17-BCBF-5B6A8F81579E.jpeg (2.22 MiB) Viewed 231 times
-

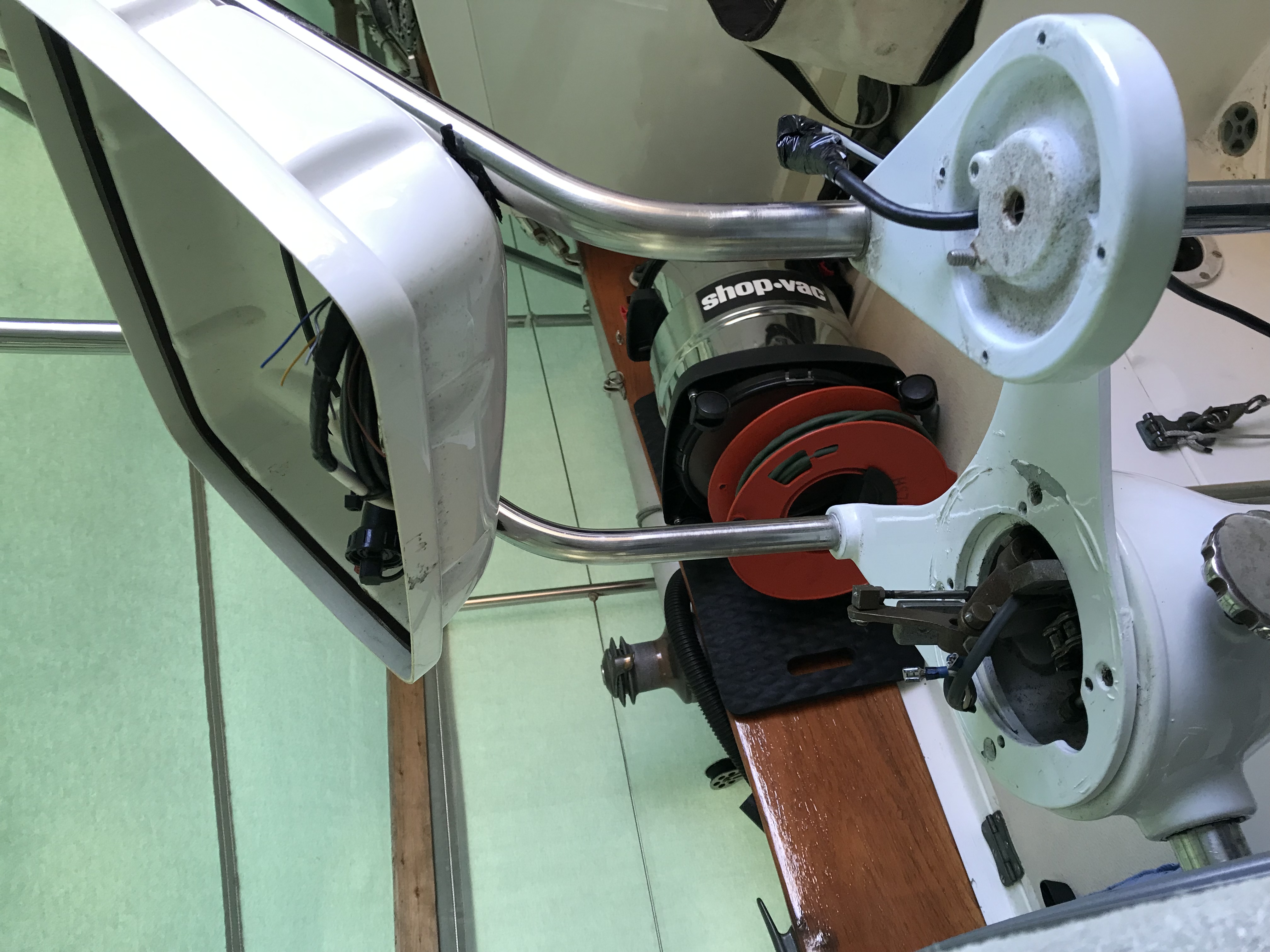

- Old components being removed.
- 8CF50A50-B26C-4679-BE40-5C498B5CA200.jpeg (2.13 MiB) Viewed 231 times
Jim Walsh
Ex Vice Commodore
Ex Captain-Northeast Fleet
CD31 ORION
The currency of life is not money, it's time
Ex Vice Commodore
Ex Captain-Northeast Fleet
CD31 ORION
The currency of life is not money, it's time
Re: Off season project: pedestal guard replacement
Additional photos;
- Attachments
-
- Everything stripped off the pedestal but the old guard bases are yet to be removed.
- 497C418D-C238-4763-999C-61A5F52DC6B3.jpeg (1.63 MiB) Viewed 230 times
-

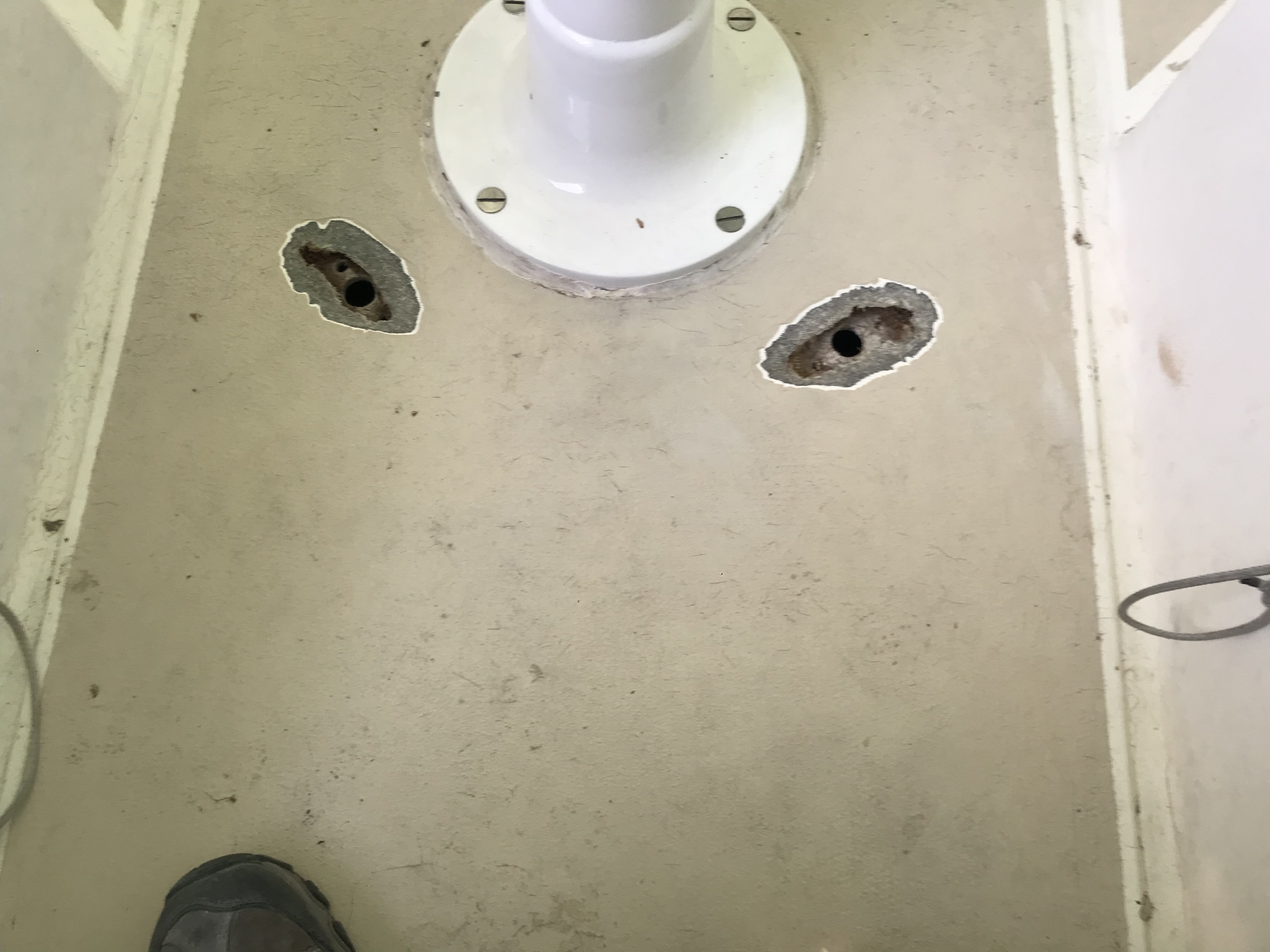

- Old pedestal guard mounting holes ground out awaiting glass and gel coat.
