Project: New companionway boards for CD22

[wikakaru]

Friday's project was to replace the old, flaking, delaminating hatchboard. It was made out of plywood, and it had not weathered well:


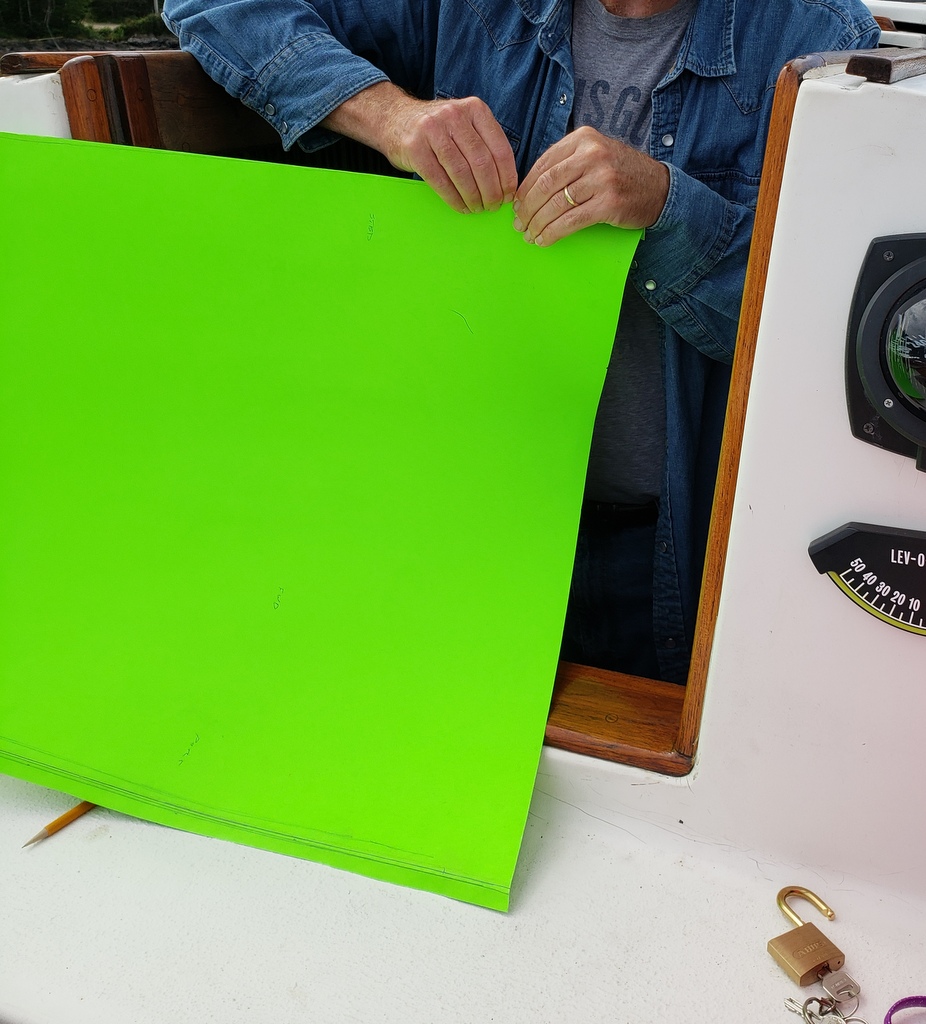

First I made a template out of poster board. Lime green is all my local store had:


I wanted to do this job inexpensively, so I decided to use a piece of PVC board from a home building supply store. The standard 8-foot "1x10" board (0.75 x 9.25 inches exactly) was large enough for me to cut the beveled edges and make the hatchboards in 3 pieces. I found some PVC board on the building supply store's web site, made by Royal Building Products, for $35, but it had a fake wood grain on one side that looked cheesy. I priced out Star Board ($147) and teak ($217). Eventually I decided to use Azek PVC ($49), which at least had a plain finish on both sides.

My neighbor let me use his table saw, and I cut the board into 3 pieces and beveled the top and bottom edges of the boards. The bottom edge is at an 8 degree angle to match the slope of the companionway, and the joints between the boards are at 30 degree angles to make sure water drains off on the outside:


[Limit of 3 attachments reached. Continued on the next post...]

[wikakaru]

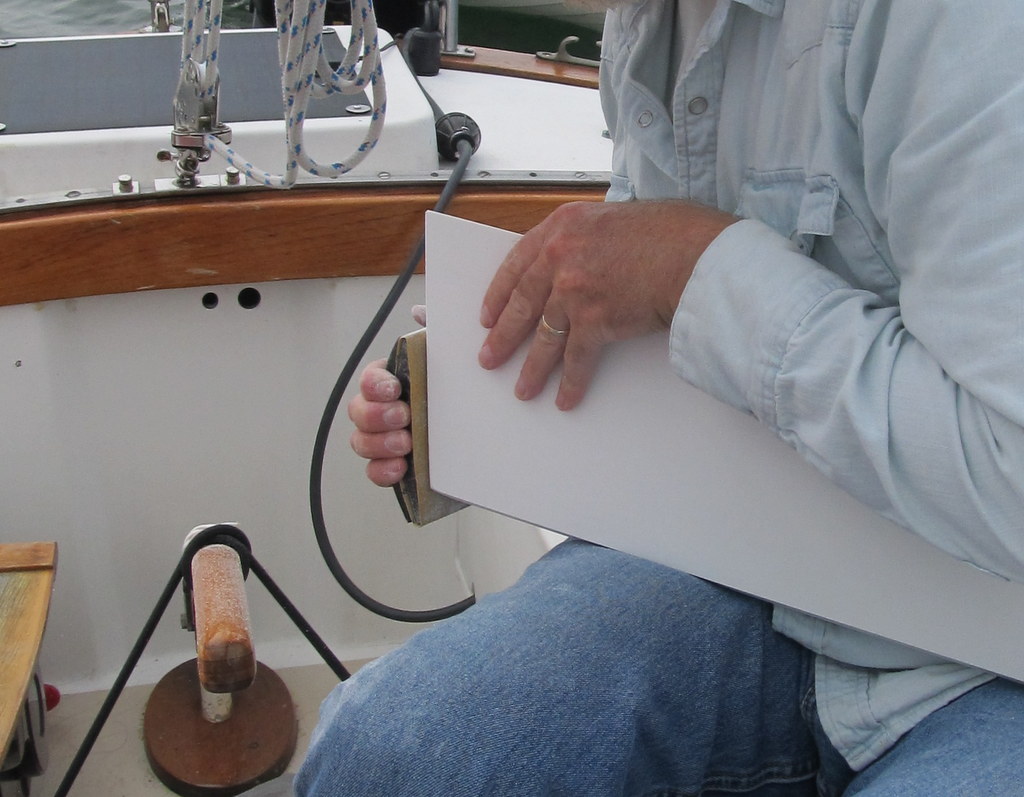

The template wasn’t perfectly sized. The poster board was thin and floppy, which made transferring measurements of an open vertical space quite challenging. Also, the corners of the companionway slot were well rounded (perhaps from years of accumulated varnish), so I had to sand the boards a bit to get them to fit:

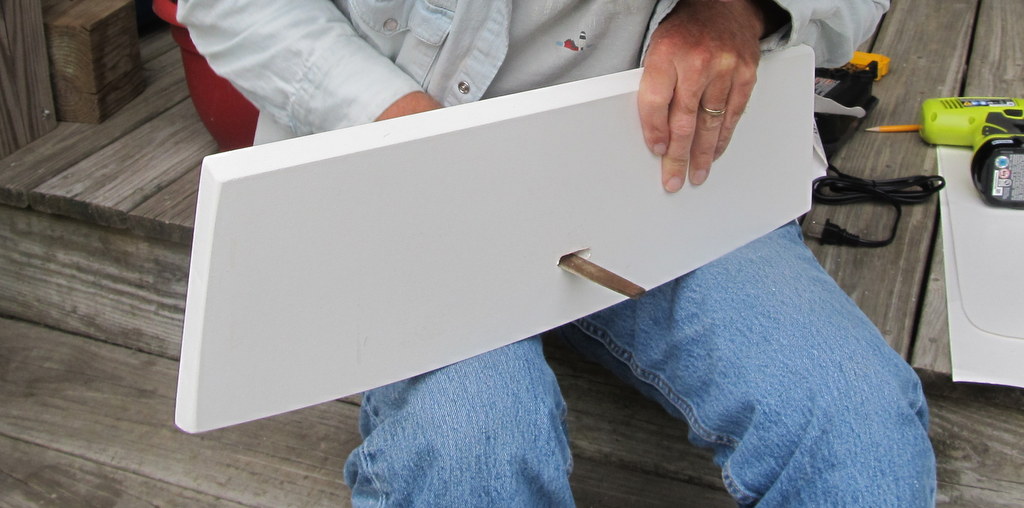

I cut out the slot for the companionway lock using a drill and a coping saw, then sanded it smooth with a file:

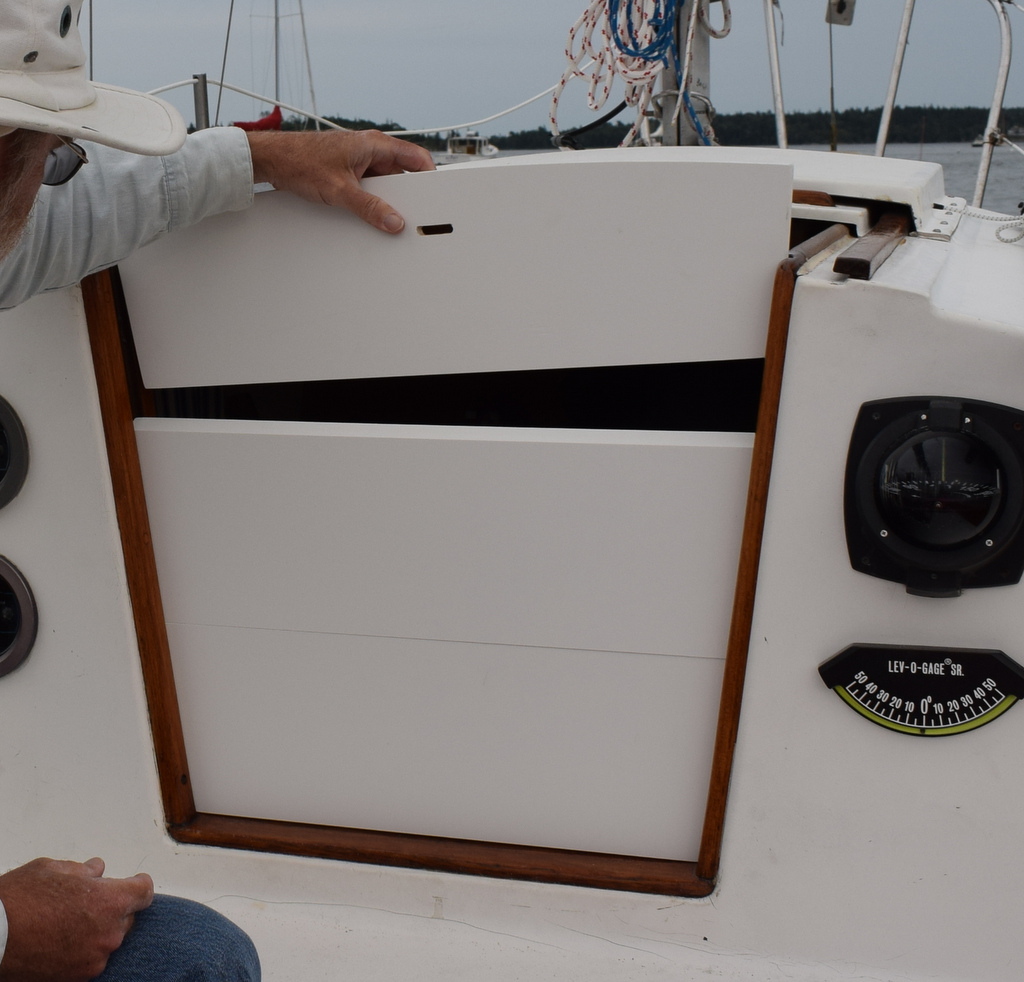

Fitting the new boards:


[Limit of 3 attachments reached. Continued on next post...]

[wikakaru]

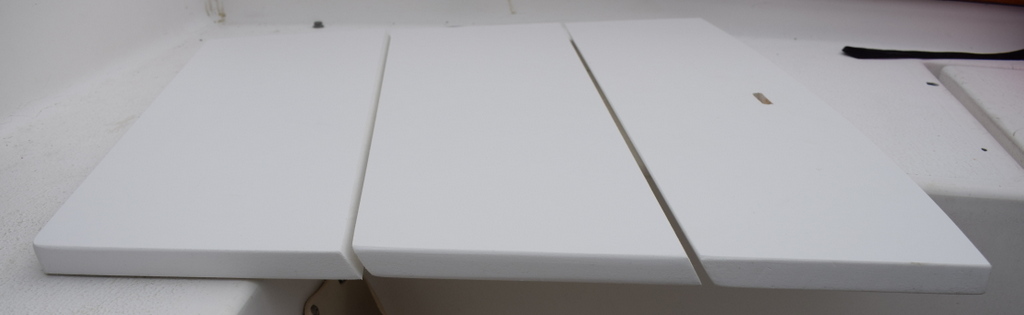

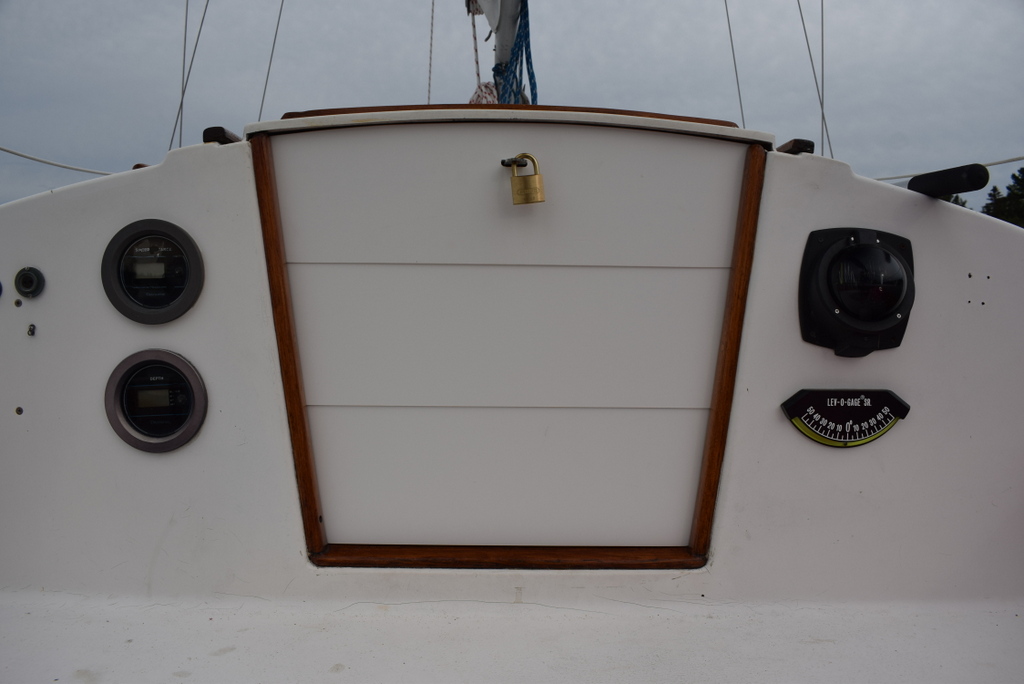

Here is the finished product:


I'm not sure how the Azek will weather. I've owned boats with both Star Board and teak for companionway boards, and those materials aged well. This PVC is a much lighter weight material. Only time will tell. In the worst case, it was a $49 learning experience on how to make hatch boards so if I later use a more expensive material, I'm less likely to make mistakes.

[Note to self: the companionway is NOT symmetrical. Which way you orient the template matters!]

Smooth sailing,

Jim
